62 000 Series

The 62 000 system provides for a highly competitive versatile folding door and window solutions that allow leafs to fold either to the inside or to the outside in lots possible configurations and across four different threshold solutions. This system solution gives architects and builders much more diversity to connect building interiors with the external environment in numerous ways.

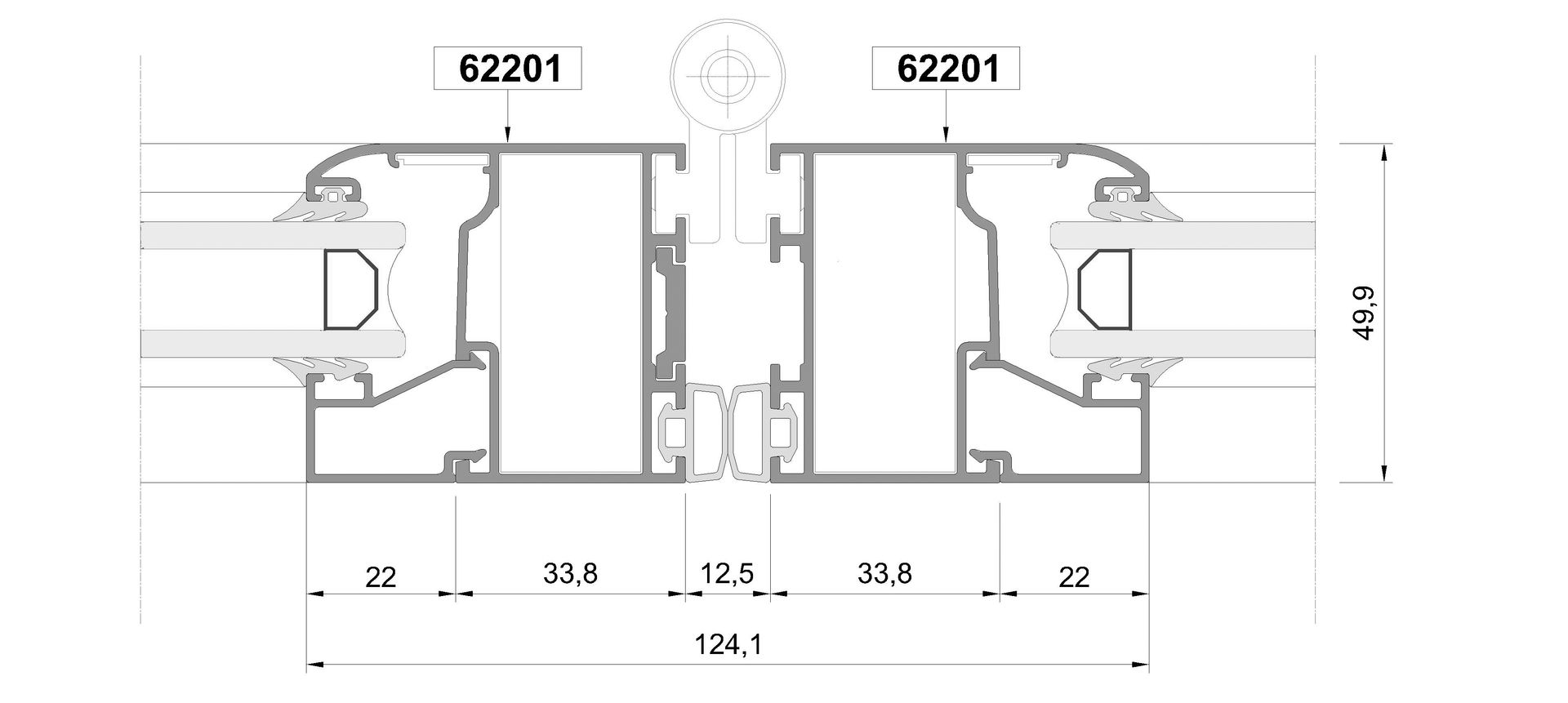

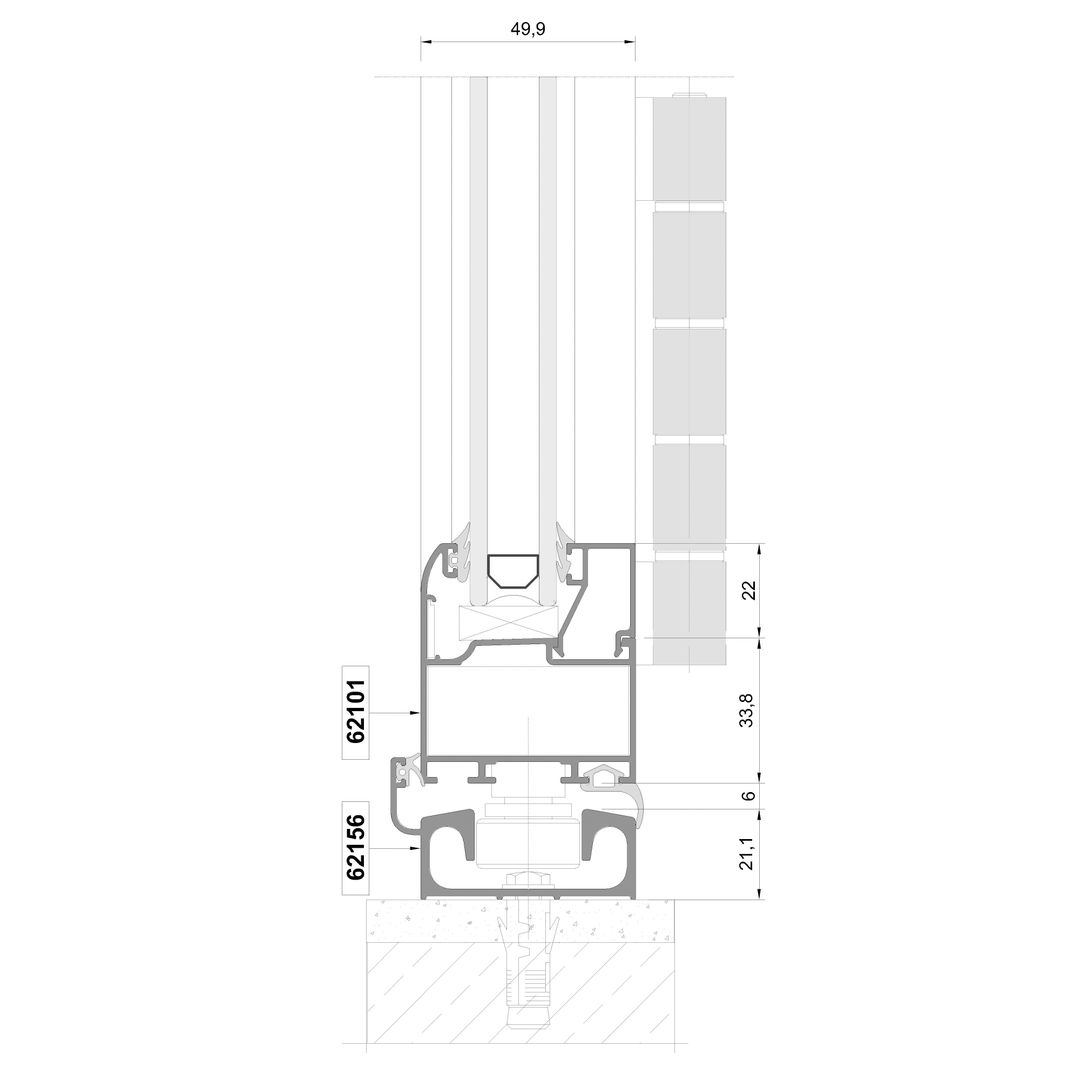

Technical data
Exterior visible width 124 mm [4.9”]
Frame Depth 50 mm [2”]
Sash Depth 50 mm [2”]
Glass Thickness ≤ 30 mm [≤ 1.2”]
Sash mechanism weight limit ≤ 300 kg [≤ 580.7 lbs]
