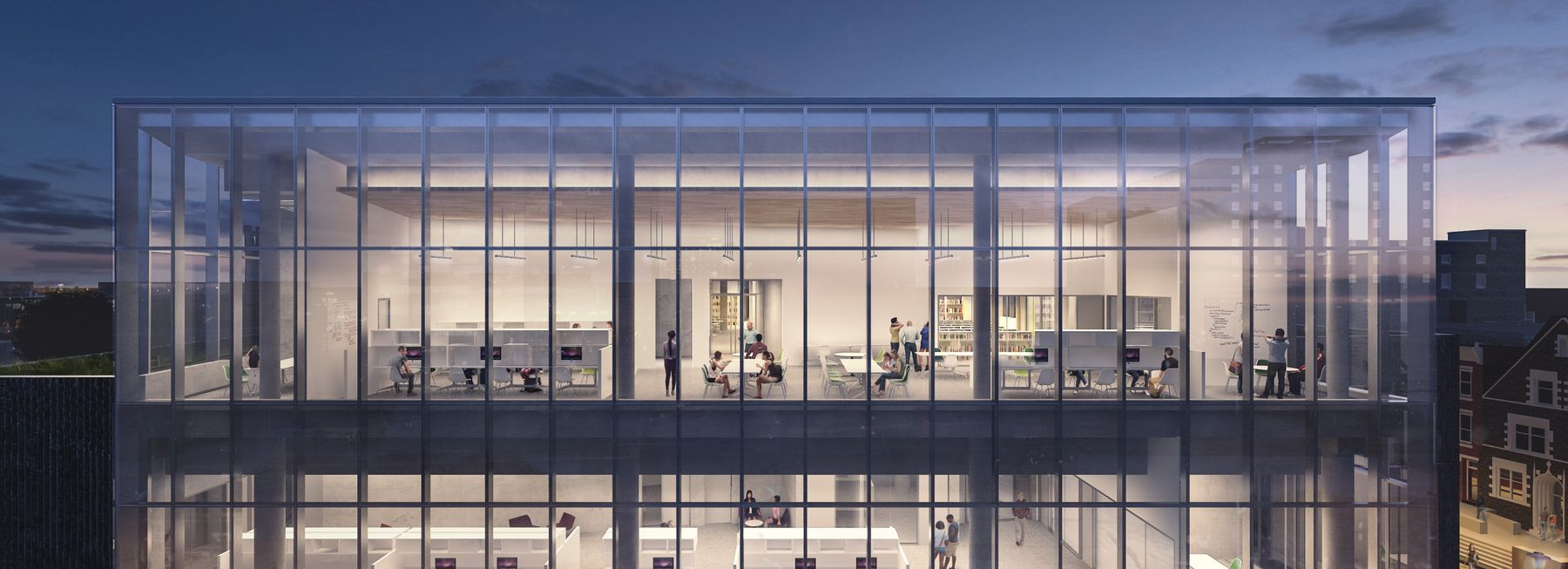

Everest CE 30 000 is a complete system for Curtain-walls offering multiple design choices and high quality for clean looking, well-built facades. With a high thermal and sound efficiency, this system is the main choice for multi-story buildings from architects all over the world. The tried and tested thermally insulated mullion/transom facade systems Everest Comfort 30000 can be used to create impressive vertical facades and skylights – particularly with large module widths and installation heights, and faceted inwards or outwards. The super Insulation system option not only fulfills current energy-saving standards but with Uf values of up to 0.8 W/m2K [0.153 BTU/h ft2°F], already exceeds some of these requirements today. In this way, aluminum curtain walling suitable for passive housing is now an option.

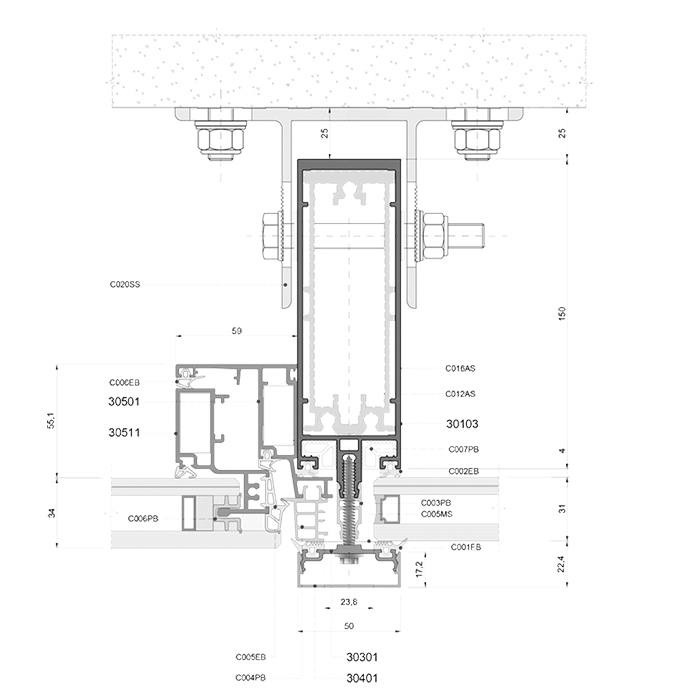

|Exterior visible width||50 mm [2”]|
|Mullion Depth||75-220 mm [3”- 8.7”]|
|Transom Depth||75-220 mm [3” – 8.7”]|
|Glass Thickness||≤ 50 mm [≤ 2”]|
|Mullion maximum inertia||jx=800|
|Transom maximum inertia||jx=800|
|Uf||0.87 W/m2K [0.153 BTU/h ft2°F]|
